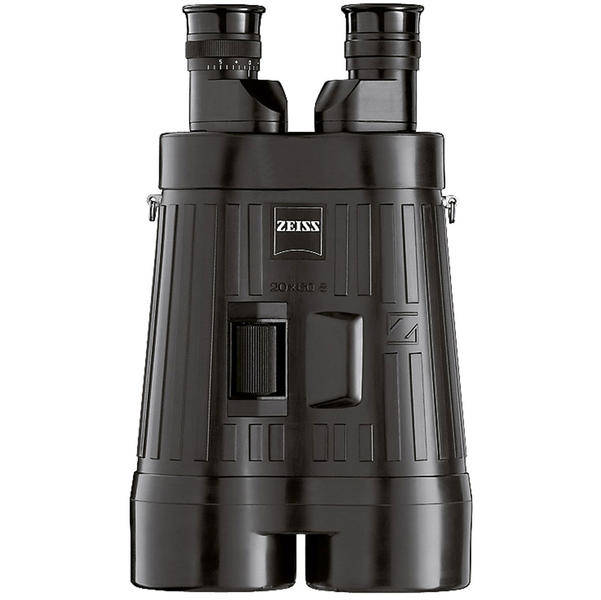

Zeiss 20x60 S med stabilisator

Unique mechanics and optical performance
A superlative set of binoculars: for 20 x magnification observation without a tripod. The 20x60 T* S makes this possible due to its technically unique image stabilisation. The unavoidable tremble that makes freehand observation at this extreme magnification impossible is "switched off" at the touch of a button. As a result you experience the same high degree of detail resolution that you would expect from a tripod. Ideal for secure aiming at long-range game.

Image stabilisation
The mechanical image stabilisation works securely and noiselessly at the touch of a button (close to the focussing wheel) and is fully mechanical with no battery power required.

The purely mechanical image stabilisation system with its gimbal-mounted spring joint and magnetic damping action works immediately at the touch of the button, noiselessly and without battery power. This results in a unique visual experience, such as you have never seen before - totally free of unavoidable hand tremor.

High-performance optics
An elaborate lens construction with special glass gives a brilliant and razor-sharp image, even at 20x magnification. The high light transmission is guaranteed by low light Porro prisms and the elaborate Carl Zeiss T* coating. This enables to make out details through to the very last of the light.

Robust mechanics
The image stabiliser is a mechanical masterpiece and naturally needs protection during harsh use, when idle or during transport. Secure, automatic locking of the moving parts when not in use and the solid, rubber armour of the metal casing serve to protect the internal optics and mechanics.

Specifications
20x60 T* S
Magnification20 x
Effective Lens Diameter60 mm
Exit Pupil Diameter3 mm
Twilight Factors34.6
Field of View at 1000m52 m
Objective Viewing Angle60 °
Close Focus14 m
Diopter Adjustment Range+7 | -7 dpt
Pupil Distance57 - 73 mm
Eye Relief13 mm
Lens TypeAchromat
PrismSystemPorro
Sealed against spray water?
LotuTec®?
Nitrogen Filling?
Functional Temperature in °C-20 | +40 °C
Height275 mm
Width, at an eye width of 65 mm:161 mm
Weight in Use1660 g
